Static Rock Bolt

STATIC CONDITIONS.
The UniPass static bolt is intended for use in static rock conditions.
The bolt comprises a fully threaded hollow bar.
The bolt can be installed in self drilling mode using a sacrificial drill bit (one step method) with the drill bit welded to the bolt, providing optimal bonding and reduced grout consumption. The bolt can also be installed in pre-drilled holes.
The grouting agent (CarboThix resin) is injected through the central hollow section of the bolt into the borehole and fills the annulus between the bolt and the borehole wall.
.png)
.png)
.png)
.png)
.png)
Advantages
- 1 High Advance Rates
- 2 Injectable with bulk resin
- 3 Extensive field and laboratory testing
Benefits
High advance rates in one step self-drilling mode
Injectable with bulk resin or cementitious grout
Proven system being applied in various mines around the globe
Various configurations available to meet local requirements
Configurations
Bolt Type | Ultimate Load (kN) | Yield Load (kN) | Elongation (%) |
---|---|---|---|
R28 | 300 | 240 | > 5 |
Product Accessories

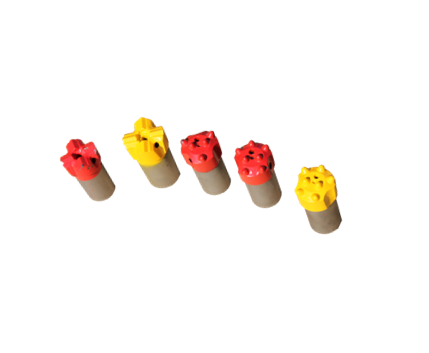

Different types of drill bits available depending on rock hardness and bolt length
Various shapes and thickness of plates depending on requirements

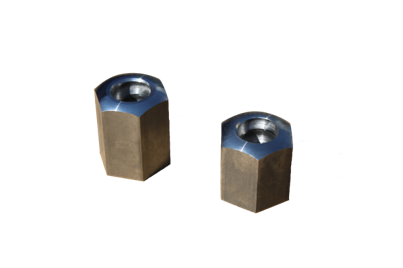

Standard and lock nuts
Industry sectors
-
Hard Rock Mining
Common use
- Faster Bolt Installation
- Broken Ground
- Collapsing Boreholes
Available Regions
- Australia and New Zealand (ANZ)
- Asia
