Friction Bolts

IMMEDIATE FRICTIONAL SUPPORT.

Friction bolts have been used internationally in mining for decades and are considered the simplest form of ground support available in metal mining. Compression of the high tensile steel "C" shape into a hole diameter smaller than the tube generates a load transfer from the steel to the rock. A steel ring is fixed to the collar end of the tube that will retain a plate on the installed tube to establish compressive force against rock.

Available in either black or hot dip galvanised. Variety of diameters (34 mm, 40 mm and 47 mm) and various lengths from 600 mm to 3,000 mm

Used in the development and production headings for immediate support with quick and easy installation.

HIGH CAPACITY FRICTION BOLT

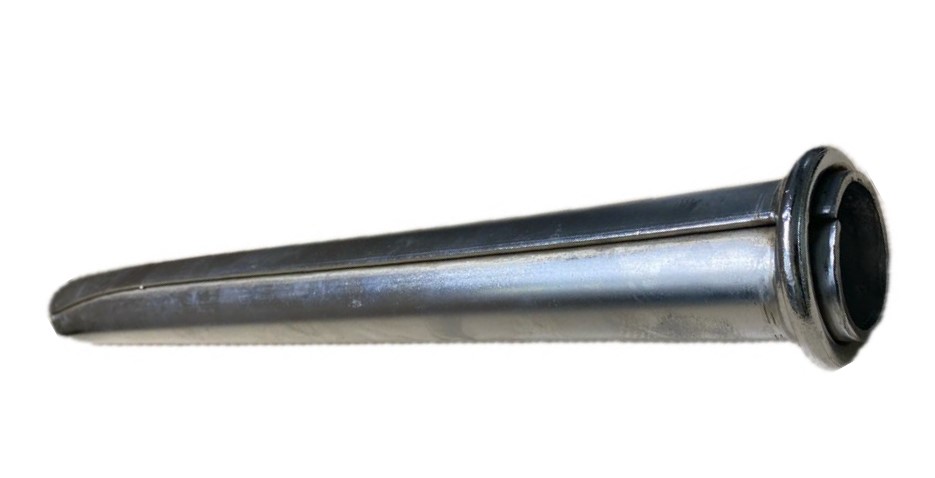

HCF (High-Capacity Friction) bolts are designed to deliver superior ground support in high-load environments, including, but not limited to, squeezing ground conditions.

MESH PIN

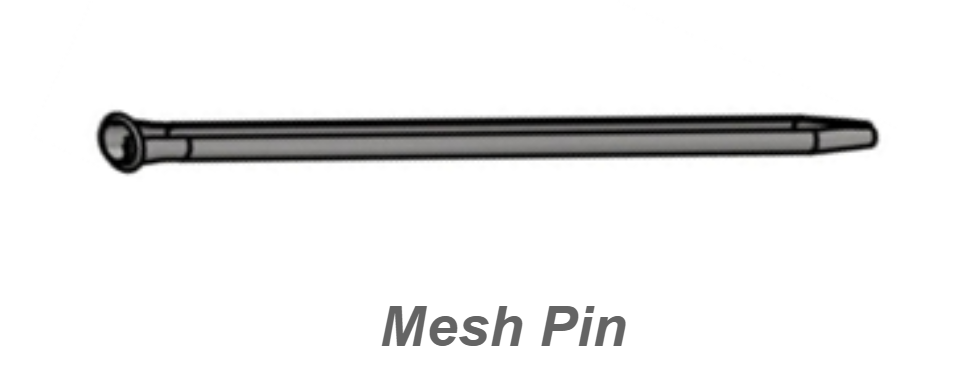

We offer Mesh Pins that improves productivity when installing mesh by reducing the number of holes to be drilled.

EXPANDABLE ROCK BOLT

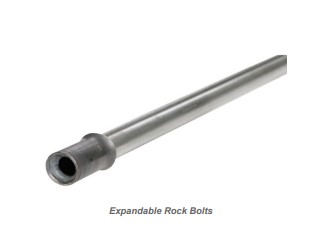

The Expandable Rock Bolt (EXRB) offers fast and reliable rock reinforcement with assured quality and guaranteed mechanical properties. The EXRB consists of a folded steel tube with upper bushing and inflation bushing welded at each end of the tube.

PLATES

We can supply a comprehensive range of plates for use with friction bolts. Plates most typically used with friction bolts are:

  • Dome plates

  • Combi plates

DRIVERS

We can supply a range of drivers for use with hand-held or mechanised bolting equipment.

Advantages

  1. 1 INCREASED CONTACT SURFACE
  2. 2 IMMEDIATE FRICTIONAL SUPPORT
  3. 3 CAN BE POST GROUTED

Features

  • Increased contact surface providing higher pull out loads

  • Immediate frictional support at the face

  • Install with hand-held or mechanised equipment

  • Quick an easy installation

  • Post-grout with Minova cement grouts for extra load bearing capacity

  • Various diameters and lengths

Configurations

MECHANICAL PROPERTIES

STRATA BOLT 34

STRATA BOLT 40/41

STRATA BOLT 47

Typical Bolt Diameter (mm)

34

40

47

Yield Strength (MPa)

410

410

350

Yield Force (MT)

7.2

8.4

11.6

Tensile Strength (MPa)

520

520

430

Tensile Force (MT)

9.1

10.7

14.2

Elongation %

18

18

20

Outer Diameter (mm)

34.9±0.5

41±1

47.5±1

Taper Diameter (mm)

21±1

26±2

34-37

Taper Length (mm)

75±2

75±1

75±1

Slot Width (mm)

14.9±2

20±2

24.5±1

MECHANICAL PROPERTIES

STRATA BOLT 34

STRATA BOLT 40/41

STRATA BOLT 47

End Slot Width (mm)

0-5

0-5

0-5

Ring Standoff Distance (mm)

3.75±0.25

5.5±0.25

5.5±0.25

Material Thickness (mm)

2.3

2.3

3.2

Bolt Length (mm)

L +/- 15mm

1475-1525

L +/- 15mm

PLATE NAME

DIMENSIONS (mm)

Dome Plate

150 x 150 x 4

Dome Plate

150 x 150 x 7

Dome Plate

200 x 200 x 4

Combi Plate

280 x 300

Combi Plate

240 x 300

Packaging

  • Bolts are usually packed 150 bolts per pallet

Coatings

  • Friction bolts are available in black or hot dip galvanised

Industry sectors

  • Hard Rock Mining

Common use

  • Anchoring
  • Ground control
  • Roof control

Available Regions

  • Australia and New Zealand (ANZ)
  • Asia
