Fibre Reinforced Mesh

DURABLE. CUTTABLE. LOW WEIGHT.

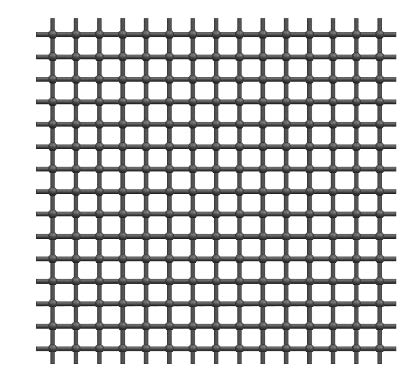

Glassfibre resin polymer (GFRP) mesh provides surface support coverage to loose rocks between installed bolts. Suitable for temporary and permanent solutions. Low-weight, ideal for decreasing risks associated with manual handling.

This mesh complies with standard grid applications while providing the added benefits of durability and cuttability. The high load capacity at each joint, comparable to welded steel mesh, is unique and makes the design of GFRP grid reinforced RC structures a viable option. Available in a range of sizes to suit individual application.

Advantages

  1. 1 HIGH CORROSION RESISTANCE
  2. 2 FLEXIBLE AND CUTTABLE
  3. 3 HIGH TENSILE STRENGTH

Features

  • High durability and corrosion resistance

  • Significantly lower thermal conductivity than steel

  • Available in anti-static coating

  • High tensile strength

  • Flexible and cuttable

  • Magnetic neutral

  • High thermal isolation

Configurations

PROPERTIES

D4 ROD 100 x 100

Mesh Dimensions (mm)

4x4/100x10

Breaking Load (kN)

12

Joint Force (kN)

2

Weight (kg/(m²)

0.63

Material

Fibreglass, Epoxy Resin

Coating

Black Antistatic

Product Options

  • MESH 1.7X1.2M 100X100X4MM FRAS NT0004650

  • MESH 2.4X1.5M 100X100X4MM FRAS NT0004649

Industry sectors

  • Coal Mining
  • Hard Rock Mining

Common use

  • Pre-driven Roadway Recovery Pillars
  • Slope Stabilisation
  • Shotcrete Reinforcement

Available Regions

  • Australia and New Zealand (ANZ)
  • Asia
