PADDLE BOLT FOR STRATA REINFORCEMENT.

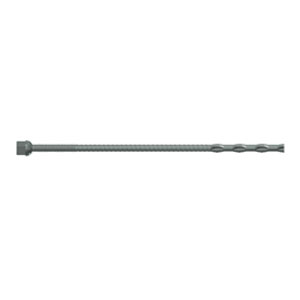

The Secura Bolt is a solid reinforcing bar for use in strata environments of underground mines. Design includes a unique paddle system to improve resin mixing and resin film shredding. Consistent and efficient mixing of resin capsule components provide higher bond strength in large diameter boreholes
The solid reinforcing bar is threaded at one end with a high strength R thread profile, including a modified rope thread with large root and small crest areas. A torque nut is attached at this end. Available in various lengths and can be supplied black or hot dip galvanised.
Variants available:
R24 Secura Bolt
R24 Secura Debonded Bolt
R28 Secura Bolt
R28 Secura Debonded Bolt
Click here to read our comparative testing information bulletin.
PLATES
We supply a comprehensive range of plates for use with the Secura bolt. Plates most typically used with Secura bolts are:
- Dome plate
- Combi Plate
- Crown Plate
DRIVERS
We can supply a range of drivers for use with hand-held or mechanised bolting equipment.
LOKSET® RESIN CAPSULES
The Lokset resin system provides rapid anchoring of the bolt to the surrounding strata. The rotation of the bolt during installation ruptures the capsule, shreds the skin and mixes the two components transforming the resin mastic into a solid anchor.
- PERMANENT PRIMARY SUPPORT
- HIGH STRENGTH THREAD
- PROVEN RESIN MIXING PERFORMANCE
- Unique paddle system to improve resin mixing providing higher bond strength
- Proven historical performance
- Permanent primary support
- High strength thread profile
- High load transfer
- Debonded variant to maintain support capacity while squeezing ground movement is taking place
| Mechanical Properties | R28 | R28 Debonded | R24 | R24 Debonded |
|---|---|---|---|---|
| Typical bolt diameter | 22.5 | 22.5 | 22 | 22 |
| Nominal cross-sectional areabar (mm2) | 455 | 455 | 370 | 370 |
| Paddle Diameter (mm) | 30 | 30 | 30 | 30 |
| Yield Strength (MPa) | 600 | 600 | 610 | 610 |
| Tensile Strength (MPa) | 830 | 830 | 850 | 850 |
| Typical Tensile Force (MT) | 35 | 35 | 32 | 32 |
| Elongation % | 21 | 21 | 19 | 19 |
| Breakout Pin Torque Nm | 120-170 | 120-170 | 120-170 | 120-170 |
| 1,000mm Debonded Elongation (mm) | n/a | 140 | n/a | 140 |
| 1,500mm Debonded Elongation (mm) | na | 200 | na | 200 |
| PLATE | DIMENSIONS (mm) |
|---|---|
| Dome Plate | 150 x 150 x 7 |
| Dome Plate | 150 x 150 x 10 |
| Combi Crown Plate | 150x150x5 / 280x300 |
| Combi Plate | 150x150x7 / 280x300 |
| Crown Plate | 150 x 150 x 5 |
- Typically packed in bundles of 100 bolts in a staggered configuration
- Supplied black or hot dip galvanised
