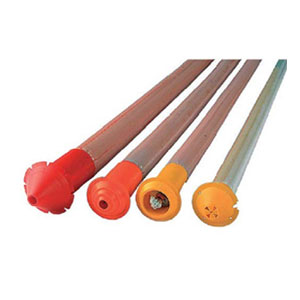

Lokset® Toospeedie®

DOUBLE SPEED. ONE CAPSULE.

Increase productivity with a two speed capsule that eliminates the need to use multiple, single speed resin capsules. Achieve pre-tensioning of fully encapsulated resin grouted rock bolts.

Filled with a reinforced thixotropic polyester resin in one compartment and a catalysed mastic filler in the other, separated by a physical barrier. The rotation of the bolt during installation ruptures the capsule, shreds the skin and mixed the two components causing a chemical reaction and transforming the resin mastic into a solid anchor.

Advantages

Features

• Reduced handling and wastage

• A unique design of capsule configuration enabling extremely effective mixing of resin mastic and catalyst compartments

• Rapid insertion, easy and quick to use

• Higher compressive strength, strong, rapid and consistent anchorage

• Guarantees both fast and slow set capsules are installed

• Both speeds compatible giving reduced back pressure and easier penetration

• No plastic or cardboard joiners required

• Allows roof bolt to be pre-tensioned quickly

• Acts as a reinforcement that clamps the individual strata layers together into a single high strength beam

• Higher modulus

• Protects bolt from corrosion, can be used in wet or underwater conditions

• Unaffected by vibration

• No expansion stresses, can be used in weak strata

• 4 Months shelf life

Configurations

Typical insertion properties at 25°C Approximate spin time in seconds Minimum hold time in seconds

Typical insertion properties at 25°C Approximate spin time in seconds Minimum hold time in seconds

Product Options

• Lokset Toospeedie - SKU NF0000118, Fast/Slow 40/60%, 1200mm x 25mm 40/60%

• Lokset Toospeedie - SKU NF0000119, Medium/Slow 40/60%, 1200mm x 25mm

• Lokset Toospeedie - SKU NF0000120, Fast/Slow, 1000mm x 25mm

• Lokset Toospeedie - SKU NF0000121, Medium/Slow, 1000mm x 25mm

• Lokset Toospeedie - SKU NF0000129, Fast/Slow, 1400mm x 25mm

• Lokset Toospeedie - SKU NF0000132, Medium/Slow X2, 1500mm x 30mm with caps

• Lokset Toospeedie - SKU NF0000135, Extra Fast/Slow, 1600mm x 30mm

• Lokset Advance Toospeedie - SKU NF0004592, Fast/Slow X2, 1200mm x 30mm with cap, 12 months shelf life

• Lokset Advance Toospeedie - SKU NF0004617, Extra Fast/ExtraSlow, 1200mm x 25mm, 12 months shelf life

• Lokset Advance Toospeedie - SKU NF0004632, Super Fast/ExtraSlow, 1200mm x 25mm, 12 months shelf life
