The Supamix capsule's low mastic to catalyst ratio improves mixing consistency and installed bolt quality. Offers extended 6 month shelf life.

In 2008 Minova completed an extensive product development program focusing on improving the quality and reliability of installed resin bolts. All the proposed developments objectives were achieved culminating in the Lokset® Supamix® range of resin capsules.

The capsule is filled with a reinforced thixotropic polyester resin in one compartment and a catalysed mastic filler in the other, separated by a physical barrier. The rotation of the bolt during installation ruptures the capsule, shreds the skin and mixes the two components causing a chemical reaction and transforming the resin mastic into a solid anchor.

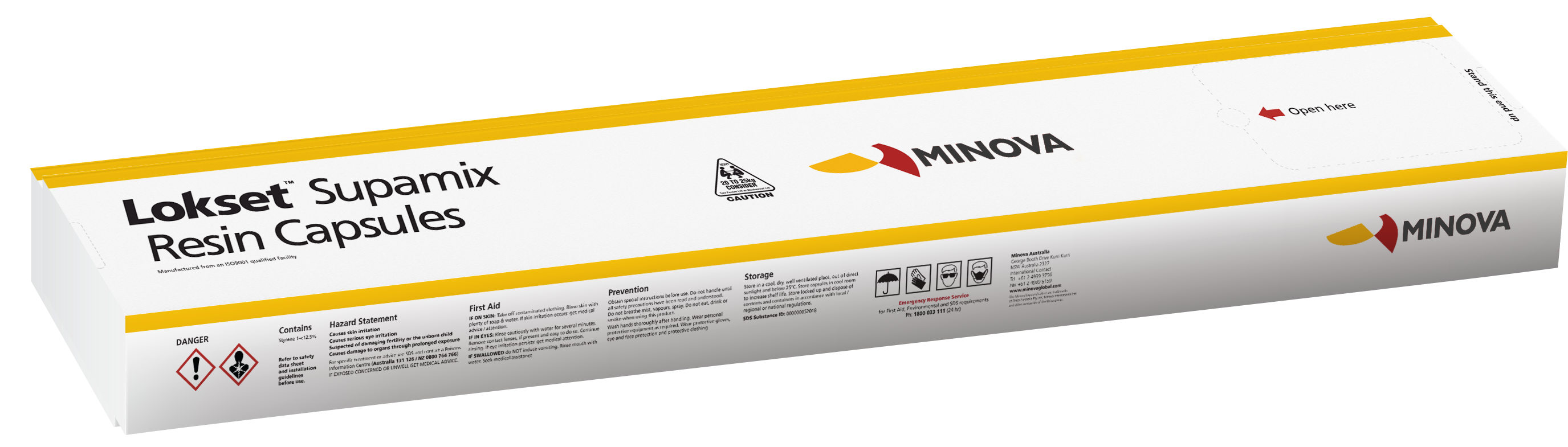

Product Image
  • Water Based Resin
  • Extended Shelf Life
  • Cost Savings
  • A unique design of capsule configuration enabling extremely effective mixing of resin mastic and catalyst compartments
  • Improved formulation providing 6 months shelf life at 25°C to reduce wastage
  • Full encapsulation with pre-tensioning utilising combination of fast and slow speed capsules
  • Point anchor installation with fast capsule
  • Full encapsulation without pre-tensioning using slow speed capsule
  • Lower viscosity and modified rheology resulting in easier push through and improved encapsulation
  • Rapid insertion, easy and quick to use
  • Higher compressive strength, strong, rapid and consistent anchorage
  • Higher modulus
  • Protects bolt from corrosion, can be used in wet or underwater conditions
  • Unaffected by vibration
  • Lower cost formulation


Super Fast SF Yellow 8 s >4 s
Extra Fast XF Yellow 8 s >4 s
Fast F Yellow 10 s >4 s
Medium M Red 15 s >4 s
Slow S Blue 20 s >70 s
Typical insertion properties at 25°C * Approximate spin time in seconds * Minimum hold time in seconds
Product Options
  • Lokset Supamix - SKU NF0000105, Fast speed, 400mm L x 25mm D
  • Lokset Supamix - SKU NF0000108, Medium speed, 800mm L x 30mm D with cap
  • Lokset Supamix Toospeedie - SKU NF0000112, Fast Slow X2 speed, 1,200mm L x 30mm D with cap
  • Lokset Supamix Toospeedie - SKU NF0000113, Medium Slow X2 speed, 1,200mm L x 30mm D with cap
The quality of Lokset resin capsule is assured through a four part quality control program
  • Raw Material Testing
  • In process quality control testing
  • Finished Product acceptance testing
  • Quality system management to ISO 9001
