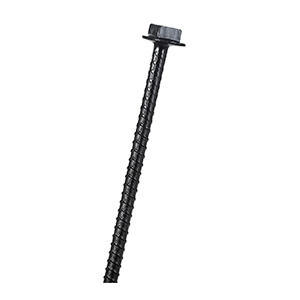

Eclipse Bolts

Minova has developed this high-performance, cost effective bolting system to enhance resin mixing and minimize the potential for “glove fingering".

Minova has developed this high-performance, cost effective bolting system to enhance resin mixing and minimize the potential for “glove fingering".

Glove fingering occurs when the film packaging within the cured resin is forced against the borehole wall to potentially interfere with the mechanical interlock of the resin and the rock mass. The offset head forces the bolt around the outside of the borehole wall, shredding the cartridge and increasing the mixing action.

Advantages

  1. 1 Minimizes glove fingering
  2. 2 Increases mixing efficiency
  3. 3 Increases pull-out strength

Product Features

  • Specially designed to work with Minova Lokset resin cartridges

  • Increases mixing efficiency

  • Increases pullout strength

  • 1/8” offset reduces glove fingering up to 70%

  • Uniform resin anchorage

  • Offset effective to end of bolt

  • Consistent quality mixing

  • No cavitation

Industry sectors

  • Coal Mining
  • Hard Rock Mining
  • Construction

Common use

  • Anchoring

Available Regions

  • North America
  • South America
