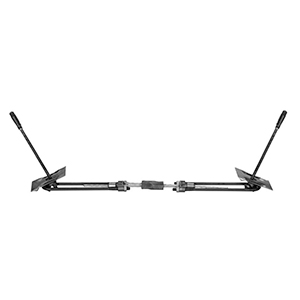

U-Bolt Hybrid Truss System

Our U-Bolt Hybrid Truss System is the highest representation of the evolving truss technology.
It incorporates various truss anchor types and two different truss shoe assemblies along with a cable cross member in concert with threaded U-bolts for re-tensioning without requiring hydraulic power, thus making it a very strong and highly flexible system.
Truss systems have evolved and currently many systems incorporate high strength cables as a key component to add flexibility and capacity. One such system is the Minova U-Bolt Hybrid Truss System.
Specifications
Truss bolts made from 7/8” Grade 75 material
Cross-members made from 0.6” (270K) low relaxation, 7-strand cable
Nominal strength of 30 tons
Hole diameters – 1”, 1-3/8”

Advantages
- 1 Flexible
- 2 High Strength
- 3 Versatile
Product Features
A variety of truss anchors can be used including:Double Lok, Tension Rebar and Resin Bolts
Cable cross-member for strength and flexibility
Threaded U-bolts for re-tensioning without the need for hydraulic power
We have two configurations of truss shoe assembly available:
Cast shoe incorporates plate and U-bolt saddle
2-V angle block that can be used with various flat plates
Industry sectors
-
Coal Mining
-
Hard Rock Mining
-
Construction
Common use
- Anchoring
Available Regions
- North America
- South America
