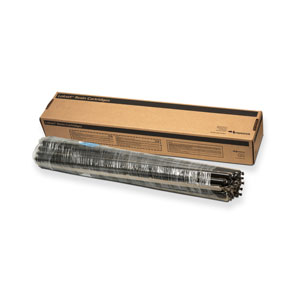

The Lokset® Resin Cartridge consists of a filled polyester mastic and a catalyst paste, contained in a heat- sealed tube of polyester film. A film barrier prevents premature chemical reaction until the anchor bolt ruptures and mixes the contents. Available in numerous gel times, the cartridge is manufactured in six diameters and length up to 64’’ long.
The system permits the placing of bolts in any position or angle above or below the horizon, in rock or concrete structures. Drill holes with rotary-percussive equipment to provide for the essential hole profile. Holes must be flushed with air or water so that they are clear of cuttings and debris.
The Lokset® (HS) Resin cartridge consists of two compartments separated by a physical barrier.
One compartment contains a polyester resin mastic and the other an organic peroxide catalyst.
The insertion and rotation of the bolt during installation ruptures the cartridge, shreds the film and mixes the two components, thus causing a chemical reaction which transforms the resin mastic to a rock-solid anchor.
The Lokset® (HS) Resin cartridge can be used in several borehole diameters and a wide range of rebar and bolting systems.
