Our range of products and solutions are designed specifically to keep ground stable, so you can focus on coal extraction, whether it is metallurgical or thermal coal, our bolts, resins, and powders will support your operations.
When you partner with us, you will receive products and services that underpin your safe performance, for all ground conditions. You can rest assured that our products have undergone rigorous testing for ground, water, and air control to provide cavity filling, seals & barriers, roof, rib and standing support, and the implementation and maintenance of longwalls.
At Minova, we actively encourage collaboration with our coal mining customers and partners, we are constantly researching and developing innovative products, to ensure that together we can provide you with the best solution.
We offer both steel and glass fibre reinforced polymer bolting products and accessories to stabilise the ground.
We have manufactured Lokset resin capsules since the late 1960's and are the leading supplier and innovator in this field. Our development and manufacturing ensures security of supply, service and support.
The Lokset system consists of an easily handled cartridge, containing a highly reinforced polyester resin component, together with its catalyst, in accurately measured quantities. The rotation of the bolt during installation ruptures the capsule, shreds the skin and mixes the two components causing a chemical reaction and transforming the resin mastic into a solid anchor.
The Lokset resin capsule series is available in multiple configurations of single/double length combinations, diameter, set time, set time combinations, viscosity and shelf life.
The oldest reference Minova has for Lokset® resin anchors was the strengthening of the London Heathrow Airport road access tunnel in 1963 to allow heavy jets to land. Since then there have been numerous applications across the world in mining applications, highway tunnels, civil applications and a submarine base.
The following types of bolts are available:

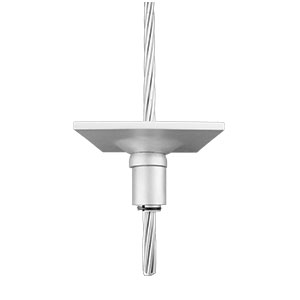

Cable bolts are made from cable of Ø18 mm and 1+6 structure in accordance with PN-71/M-80236 standard. The following types of bolt can be distinguished:
The cable lay of KL 18 K bolt was modified to form birdcage like bulbs of 100 mm in length and 26 ÷ 28 mm in diameter. This ensures a better force distribution affecting the cement grout around the cable. When filled with grout the cages act like stiff bulbs in relation to the cement face.

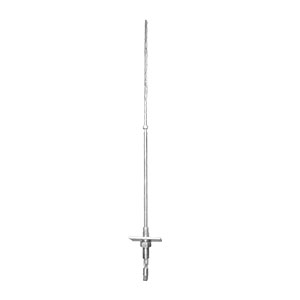

Cable bolts are made from cable of Ø15.5 or 18 mm in diameter and 1+6 structure. Upper end is cut by one side to perforate resin cartridges easier. Upper part cable was modified to achieve better load distribution on resin column around cable. When filled up with grout or resin the cages act like stiff bulbs in relation to the cement face.
Birdcages are designed to mix resin cartridges. In the lower part there is stiffening tube and tensioning sleeve. Both items are solid jointed. Tensioning sleeve with the wedge work as clamp. Bottom is ended with hexagonal adapter to rotate the bolt. Rubber seal on the cable used only when installed with the resin of low viscosity.
The following production options are available:
GFRP products are suitable for temporary and permanent solutions and with their low-weight, their are ideal for decreasing risks associated with manual handling.
Our partnership with FiReP® allows us to provide you with the flexibility that you need, wherever you are.
FiReP® Group is one of the world’s largest producer of Fibre Reinforced Polymer (FRP) pultruded bars with unique profiles and thread functions for application in the mining, construction and energy sectors.
The Group has two plants in Shanghai (China) and Velenje (Slovenia), certified according to ISO9001 and ISO14001.
With subsidiaries in the 6 countries Switzerland, Germany, China, Slovenia, Canada and Japan the group offers worldwide presence and service on site.
Minova has partnered with FiReP in 2009 to bring new products and technical expertise to our portfolio.
Since then, we have been working jointly to provide our mining, energy and construction customers with an enhanced portfolio of support products and services.
Our products provide pre-support in poor ground conditions.
Our know-how is the result of over 40 years of experience in the production and global supply.
The system features a hollow bar, which is used as a drill string for drilling either with water flush, air flush or cement grout flush.
All system components are rigorously tested according to stringent factory standards and ISO 9001 to ensure that the specifications are met. The sacrificial drill bit significantly enhances the productivity of the installation process. In order to improve performance and cost-effectiveness, project data are being collected from around the world.
Continuous optimisation of our drill bits is a primary concern to further improve the penetration rate and bit quality while at the same time reducing manufacturing costs. For improved corrosion resistance, Self Drilling Anchor components are either hot dip galvanised or fitted with a TwinCoat coating (hot-dip galvanisation with an additional dual epoxy coating).

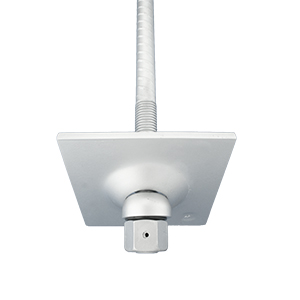

Resin Bolts Type G are anchors of modern design, with high anchoring and adjustment range of capacity.
Anchor rods are made of ribbed bar of nominal diameters dn = 20, dn = 22, dn = 25, dn = 28, and dn = 32 mm. Rods are threaded and beveled on its top with an angle of 45° or flat.

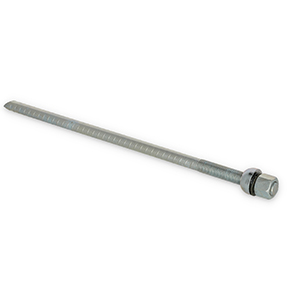

AP bolts are modern design anchors with a load capacity of up to 300 kN and a nut locking system (shear pin). The anchors can be used with three types of washers; a square washer, a round washer or a square washer with an eyelet made of 8 or 10 mm plate.
Providing ground support on the surface of mines.
Osro Straps are used in mining and tunnelling to provide continuous strip support between rock bolts, inhibiting fall-outs between the bolts and helping to maintain the integrity of rockmass.
The grips are made of typical J25, J29, and J36 type section and are fixed by two bolts or by bolt and hook screw M24 or M20.
SP-220, SP-270, and SP-320 W-straps have a similar design. They differ only in terms of steel sheet thickness and section width. There are deformations for added strength and appropriately spaced holes along the straps (round or oval as requested). It is possible to connect two or more mats cross wisely or length wisely.
In terms of a range of application and production method the mats can be divided into the following types:
The idea for designing these arches was created thanks to cooperation with the mining industry and is a response to the requirements of a rectangular coal mine to obtain a large width of the excavation.
Square arches consist of elements made of V-25 section shape joined by “overlapping” SD25 or SDO25 clamps.
Square arches consist of elements made of V-29 section shape joined by “overlapping” SD29 or SDO29 clamps.
We offer enhanced standing and roof support solutions in underground coal mining.
A one component material which after mixing at the site of application with the appropriate amount of water (water/powder ratio of 1:1 to 4:1) sets to become a durable concrete material.
The material, upon exiting the pump, is liquid and thus it is able to fill any roughness and gaps. Tekblend gels after about 3 minutes depending on the preparation method.
Tekblend is commonly applied in:
- building of monolithic packs for the protection of longwall galleries
- building of ventilation and explosion resistant seals
- building of isolation and backfill walls
- filling voids (cavities) above mining excavation roof support
- eliminating voids outside of mining excavation roof support
- filling backfill voids
- sealing of galleries
It is a one-component material, which after mixing at the site of application with the appropriate amount of water (water/powder ratio of range 1:1 to 2:1), sets to a durable concrete material.
Upon exiting the pump, the material is liquid and thus it is able to fill any roughness and gaps. Tekblend H gels after about 10 minutes depending on the preparation method.
Our extensive range of polymer systems are used for stabilising, sealing and consolidating the ground.
GEOFLEX HS Component A is a special sodium silicate with additives. GEOFLEX HS Component B is a modified polyisocyanate.
The curing of Component A results in a silicate, whilst smultaneously a solid polyisocyanurate/polyurea is formed from Component B. The mixture of these two Components creates a tough, elastic, solid silicate resin (organic-mineral resin).
This product was designed to improve the productivity of ground support installation in underground mining and tunnelling applications. Using the pumpable resin enables the load to be taken up in minutes rather than the typical 24 hours from cementitious grouted systems. Typical applications of CarboThix™ include grouting of cable bolts, solid steel or GFRP bolts, self-drilling anchors and one-step bolting operations in automated mode or for consolidation injection works in direct overburden.
Our sprayed coatings and membranes provide additional ground support and waterproofing solutions.
Fibre reinforced, this product offers strengths over 55 MPa and can be used in conventional, dry-process shotcrete equipment. It is ideal where immediate structural strength is required.
Tekcrete™ Fast M was developed in response to customer demand for a shotcrete with effectively immediate strength on application. The product can be used with or without steel or polymer mesh, although the mesh will provide additional tensile and flexural strength. Binding broken strata together for better structural integrity, Tekcrete™ Fast M can be used anywhere in a mine where conventional shotcrete is used and as with any coating or sealant.
The high-strength Tekflex membrane was originally developed according to the TSL (Thin-Sprayed-Liner) technology to serve as an alternative to steel mesh and shotcrete for mining projects. Today, the Tekflex family has expanded and covers many more applications in the civil and tunnelling sectors.
Tekflex products are based on mineral materials with special additives or polymers to achieve sufficient rigidity or required flexibility depending on the type of the application. With just a few mm of thickness, the Tekflex membranes represent an effective, low-cost solution for changing the mechanical parameters of the lining or increasing impermeability.
Capcem™ KT is a rapid-hardening sealant coating that provides a protective layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure. Support strength develops rapidly after placement.
Capcem™ KT Fast 2C is a sealant coating that provides a protective, light grey layer to rock, coal, or concrete surfaces which are susceptible to deterioration on exposure. This product is especially recommended for stabilisation of burnt coal surfaces, whilst its fast rate of strength development allows rapid development of support.
Capcem™ KT Grey is a sealant coating that provides a protective grey layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure.
Capcem™ KT White is a bright sealant coating that provides a protective layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure. The bright white colour makes it particularly suitable for use in waiting places, underground workshops and similar locations.
Our range of equipment and accessories provides enhanced operational capabilities.
This is a self-contained small drill rig for drilling holes and installing rock bolts in low-height stopes. By clamping itself between the footwall and hanging wall the Autorock rig stabilises and guides the rock drill, allowing remote operation and faster penetration. This gives marked improvements in safety and productivity.
The Autorock rig is made in a number of models, to suit different stope widths, user preference of power sources and rock drills.
Today more than 5000 units are operated in South Africa.

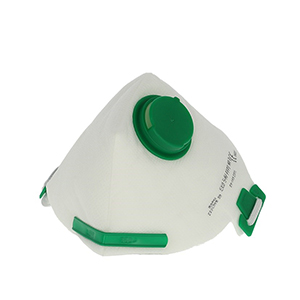

Our filtering half masks are easy to use and disposable PPE that can be used during the sprayed application of products or where there are high dust levels.
These masks can be used in a variety of working environments from mining, construction to energy sectors.
We provide a comprehensive range of auxiliary products for the fast and easy application of this innovative product.
Parachutes are recommended when Lokset™ resin capsules are air-loaded into rock bolt holes. The parachute guides and protects the capsule while it travels at high speed through the loading tube into the hole, then holds the capsule up the hole until the bolt is inserted.
Instructions for use:
------------------------------------------------------------------------------------------------------------------------
Resin capsule top hats are made from recycled plastic and are used to retain resin capsules in rock bolt holes, until the bolts are inserted. This frees the operator to use both hands for other tasks such as lining up the rock bolt and operating the bolting machine.
Instructions for use:
------------------------------------------------------------------------------------------------------------------------
The resin injector is used to load Lokset™ resin capsules into roofbolt holes, and consists of a plunger within a hollow tube. Each Resin Injector is tested in our laboratories prior to dispatch.
Instructions for use:
--------------------------------------------------------------------------------------------------------------------------
The Quick-Chem™ Lokset™ resin capsule insertion system ensures safe, fast and complete insertion of resin capsules. The system consists of a specially designed cap suitable for attaching to Lokset™ resin capsules and an insertion tube that carries the resin capsule(s) to the back to of the holes and is then removed for re-use.
Instructions for use:
Its design enables it to achieve 50 % more thrust during drilling or bolt installation compared to other machine types which require a 3rd stage leg for similar reach.
The careful selection of materials and design allows the Super Turbo to be the lightest and strongest machine available which enables it to operate reliably and effectively in even the toughest mining environments.
Specialist products aimed at enhancing mining ground support.
It is a solvent designed for cleaning implements and especially pumps after use of polyurethane/silicate resins.
It is a solvent blend based on dicarbonic acid esters. It has got a high polarity and is environmentally friendly.
It is a lubricant based on synthetic esters, that is readily biodegradable and is compatible with standard sealing materials such as Viton, FPM, HBNR, AU, NBR.
Our extensive range of injectable products and systems are used for water control in the mining environment.
Ekopur products are versatile and with varying parameters, they are used for a wide number of applications including:
This is a revolutionary system for installing permanent underground ventilation seals.
The product is easy to install and eliminates the requirement for hitching into the roof, ribs and floor. With less manpower required for installation and possibility to place it remotely from the working site, the products reduce risk of unnecessary exposure of your workers, making them safer.
Tekseal is widely used around the world and is ideal for the difficult to reach areas.
The products within this range are available in various formulations to tailor their application to your needs.
Our sprayed coatings and membranes help control water underground.
The high-strength Tekflex membrane was originally developed according to the TSL (Thin-Sprayed-Liner) technology to serve as an alternative to steel mesh and shotcrete for mining projects. Today, the Tekflex family has expanded and covers many more applications in the civil and tunnelling sectors.
Tekflex products are based on mineral materials with special additives or polymers to achieve sufficient rigidity or required flexibility depending on the type of the application. With just a few mm of thickness, the Tekflex membranes represent an effective, low-cost solution for changing the mechanical parameters of the lining or increasing impermeability.
Capcem™ KT is a rapid-hardening sealant coating that provides a protective layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure. Support strength develops rapidly after placement.
Capcem™ KT Fast 2C is a sealant coating that provides a protective, light grey layer to rock, coal, or concrete surfaces which are susceptible to deterioration on exposure. This product is especially recommended for stabilisation of burnt coal surfaces, whilst its fast rate of strength development allows rapid development of support.
Capcem™ KT Grey is a sealant coating that provides a protective grey layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure.
Capcem™ KT White is a bright sealant coating that provides a protective layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure. The bright white colour makes it particularly suitable for use in waiting places, underground workshops and similar locations.
Specialist products aimed at enhancing mining ground support.
It is a solvent designed for cleaning implements and especially pumps after use of polyurethane/silicate resins.
It is a solvent blend based on dicarbonic acid esters. It has got a high polarity and is environmentally friendly.
It is a lubricant based on synthetic esters, that is readily biodegradable and is compatible with standard sealing materials such as Viton, FPM, HBNR, AU, NBR.
Our resin and grouts are used for ventilation & gas control in mines.
Ekopur products are versatile and with varying parameters, they are used for a wide number of applications including:
Component A is a modified silicate, and component B is a modified isocyanate. After mixing in a volumetric ratio 1: 1 the resin starts foaming up within a few seconds.
This is a revolutionary system for installing permanent underground ventilation seals.
The product is easy to install and eliminates the requirement for hitching into the roof, ribs and floor. With less manpower required for installation and possibility to place it remotely from the working site, the products reduce risk of unnecessary exposure of your workers, making them safer.
Tekseal is widely used around the world and is ideal for the difficult to reach areas.
The products within this range are available in various formulations to tailor their application to your needs.
Providing resins and foams for void filling in and around seals.
Component A is a modified silicate, and component B is a modified isocyanate. After mixing in a volumetric ratio 1: 1 the resin starts foaming up within a few seconds.
Carbofill is and instant foaming two-component phenolic foam used for:
- Filling of cavities e.g. in roads, longwalls and rise drifts
- Filling of cavities to prevent gas accumulations
- Filling of roadside packs against air leakage from the goaf
- Construction of dams for fire fighting
- Sealing of end dams
- Sealing and filling for fighting fire e.g. by Wiborex bolt
- Stabilisation of broken fragments in the end positions of the longwall
- Gas sealing of the roadside embankment
We recommend using PHENET rinsing liquid for cleaning of the equipment contaminated with Carbofill Component A.

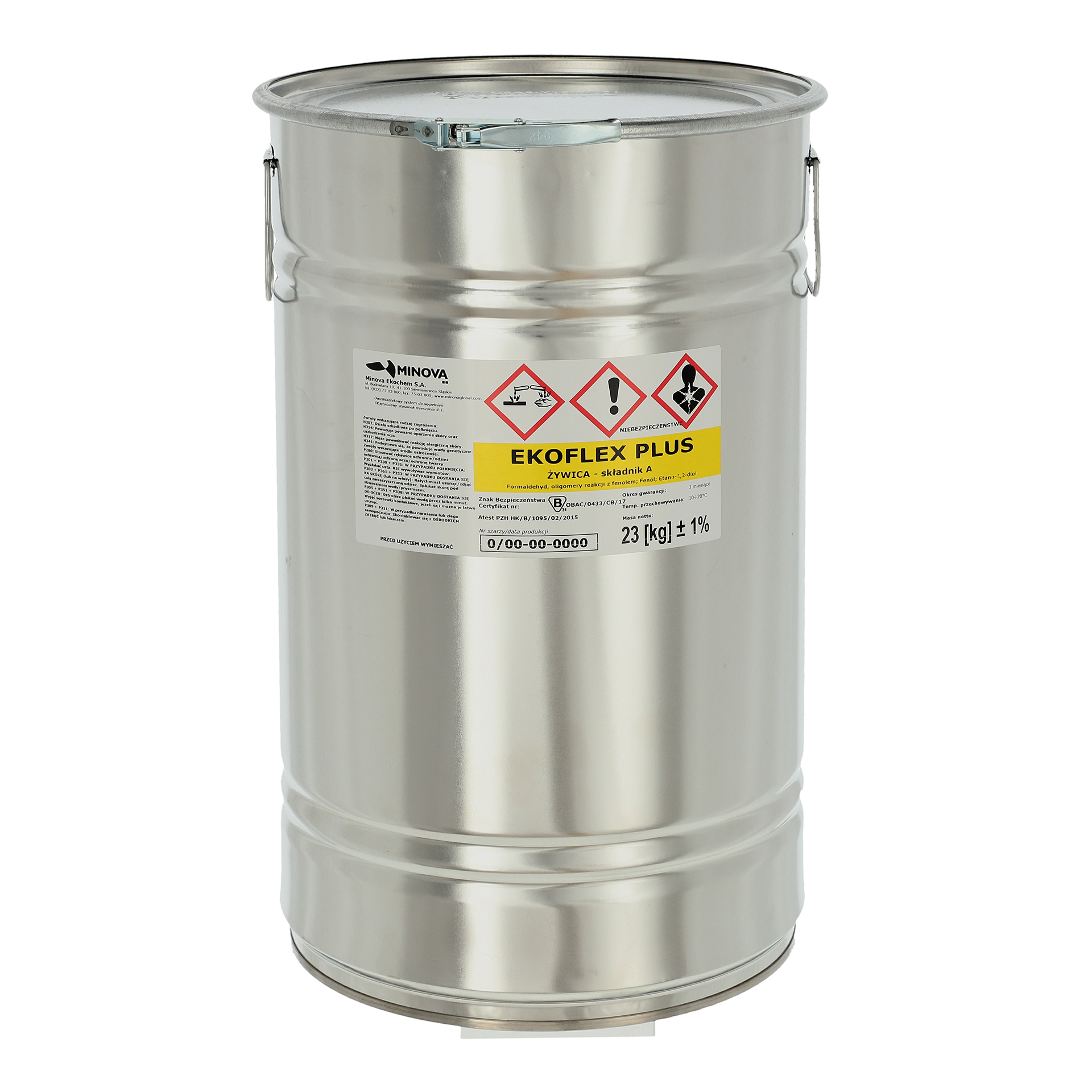

Ekoflex products are a two-component foams, obtained after mixing component A (aqueous solution of phenol-formaldehyde resin) and component B (aqueous solution of organic and inorganic acids) in a volume ratio of 4:1. The foam property allows the products to be used under various geological and mining conditions.
Various products are available in this category with varying foaming factors and reaction speeds.
Our products provide excellent stoppings and seal solutions.
The high-strength Tekflex membrane was originally developed according to the TSL (Thin-Sprayed-Liner) technology to serve as an alternative to steel mesh and shotcrete for mining projects. Today, the Tekflex family has expanded and covers many more applications in the civil and tunnelling sectors.
Tekflex products are based on mineral materials with special additives or polymers to achieve sufficient rigidity or required flexibility depending on the type of the application. With just a few mm of thickness, the Tekflex membranes represent an effective, low-cost solution for changing the mechanical parameters of the lining or increasing impermeability.
When mixed with water, the material sets within minutes. It creates a coating with instant resistance to pulling off and delamination caused by active leaks of water. It is particularly recommended for areas with high moisture content or highly watered.
Capcem™ KT is a rapid-hardening sealant coating that provides a protective layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure. Support strength develops rapidly after placement.
Capcem™ KT Fast 2C is a sealant coating that provides a protective, light grey layer to rock, coal, or concrete surfaces which are susceptible to deterioration on exposure. This product is especially recommended for stabilisation of burnt coal surfaces, whilst its fast rate of strength development allows rapid development of support.
Capcem™ KT Grey is a sealant coating that provides a protective grey layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure.
Capcem™ KT White is a bright sealant coating that provides a protective layer to rock, concrete or coal surfaces which are susceptible to deterioration on exposure. The bright white colour makes it particularly suitable for use in waiting places, underground workshops and similar locations.
Specialist products aimed at enhancing mining gas and ventilation control.
It is a solvent designed for cleaning implements and especially pumps after use of polyurethane/silicate resins.
It is a solvent blend based on dicarbonic acid esters. It has got a high polarity and is environmentally friendly.
It is a lubricant based on synthetic esters, that is readily biodegradable and is compatible with standard sealing materials such as Viton, FPM, HBNR, AU, NBR.
Providing pumpable grouts for cavity and void filling in the mining sector.
Component A is a modified silicate, and component B is a modified isocyanate. After mixing in a volumetric ratio 1: 1 the resin starts foaming up within a few seconds.
Carbofill is and instant foaming two-component phenolic foam used for:
- Filling of cavities e.g. in roads, longwalls and rise drifts
- Filling of cavities to prevent gas accumulations
- Filling of roadside packs against air leakage from the goaf
- Construction of dams for fire fighting
- Sealing of end dams
- Sealing and filling for fighting fire e.g. by Wiborex bolt
- Stabilisation of broken fragments in the end positions of the longwall
- Gas sealing of the roadside embankment
We recommend using PHENET rinsing liquid for cleaning of the equipment contaminated with Carbofill Component A.
Ekoflex products are a two-component foams, obtained after mixing component A (aqueous solution of phenol-formaldehyde resin) and component B (aqueous solution of organic and inorganic acids) in a volume ratio of 4:1. The foam property allows the products to be used under various geological and mining conditions.
Various products are available in this category with varying foaming factors and reaction speeds.
Specialist products aimed at enhancing mining cavity and backfilling.
It is a solvent designed for cleaning implements and especially pumps after use of polyurethane/silicate resins.
It is a solvent blend based on dicarbonic acid esters. It has got a high polarity and is environmentally friendly.
It is a lubricant based on synthetic esters, that is readily biodegradable and is compatible with standard sealing materials such as Viton, FPM, HBNR, AU, NBR.
