W Straps
W-straps type SP deliver robust crosswise and lengthwise roof and rib support, compatible with all anchor types and offering flexible layouts with high-strength formed steel.
Product Benefits
Effective reinforcement of the mining pit
Designed for cooperation with anchor plates
Various dimensions and strengths available
Certificate of Conformity issued by "INOVA" Technical Innovation Center Ltd. No.81/4/2017
W- straps are packed in packages of 10-20 items
Sectors
Metal & Non-Metal Mining, Coal Mining
Applications
Anchoring, Ground control
Product Details
W-straps type SP are used for crosswise and lengthwise support of roofs and ribs in mine working areas. They are suitable to be used with expansion, resin, cable and tubular friction anchors.
SP-220, SP-270, and SP-320 W-straps have a similar design. They differ only in terms of steel sheet thickness and section width. There are deformations for added strength and appropriately spaced holes along the straps (round or oval as requested). It is possible to connect two or more mats cross wisely or length wisely.
Product variants & Applications

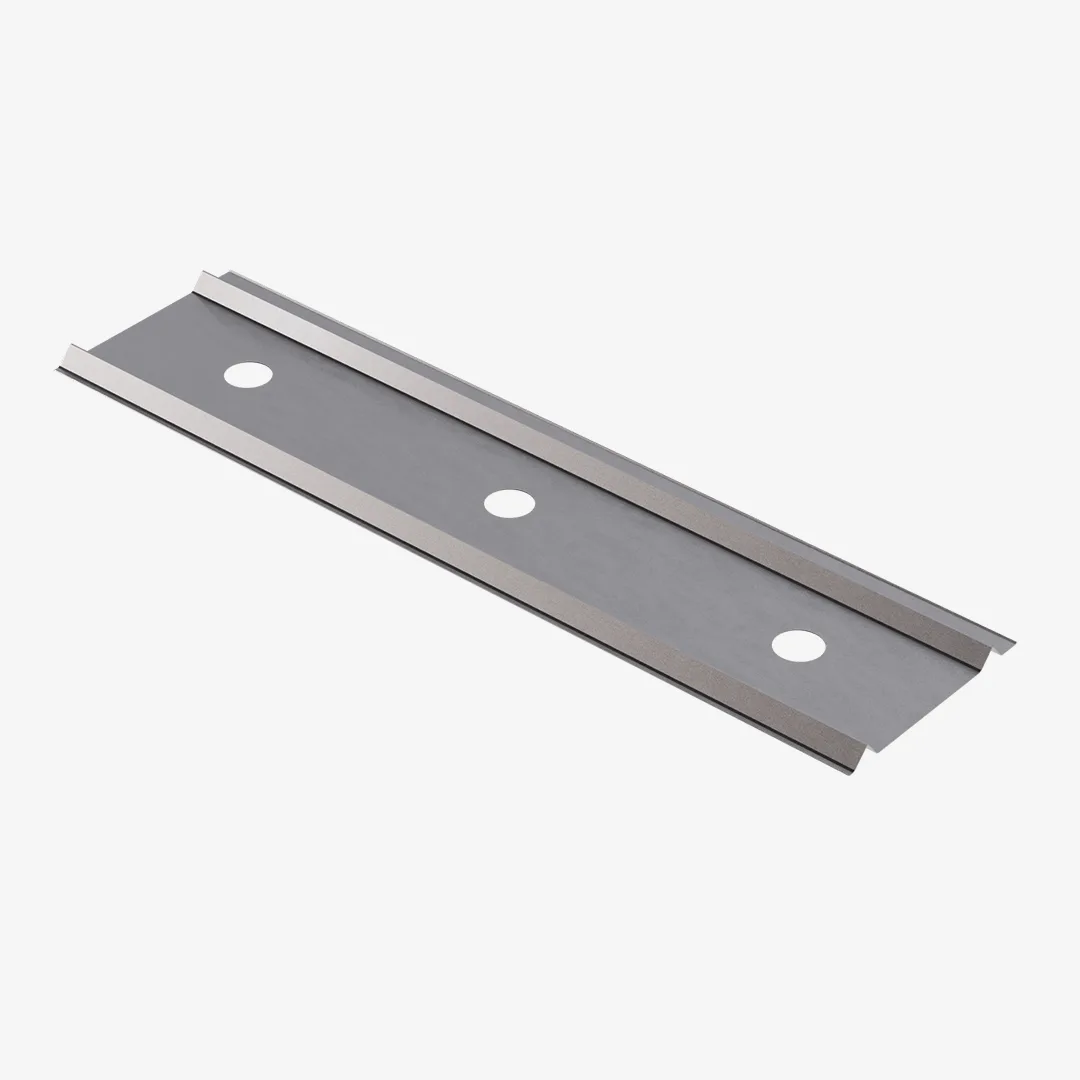

W Straps - Type SPs

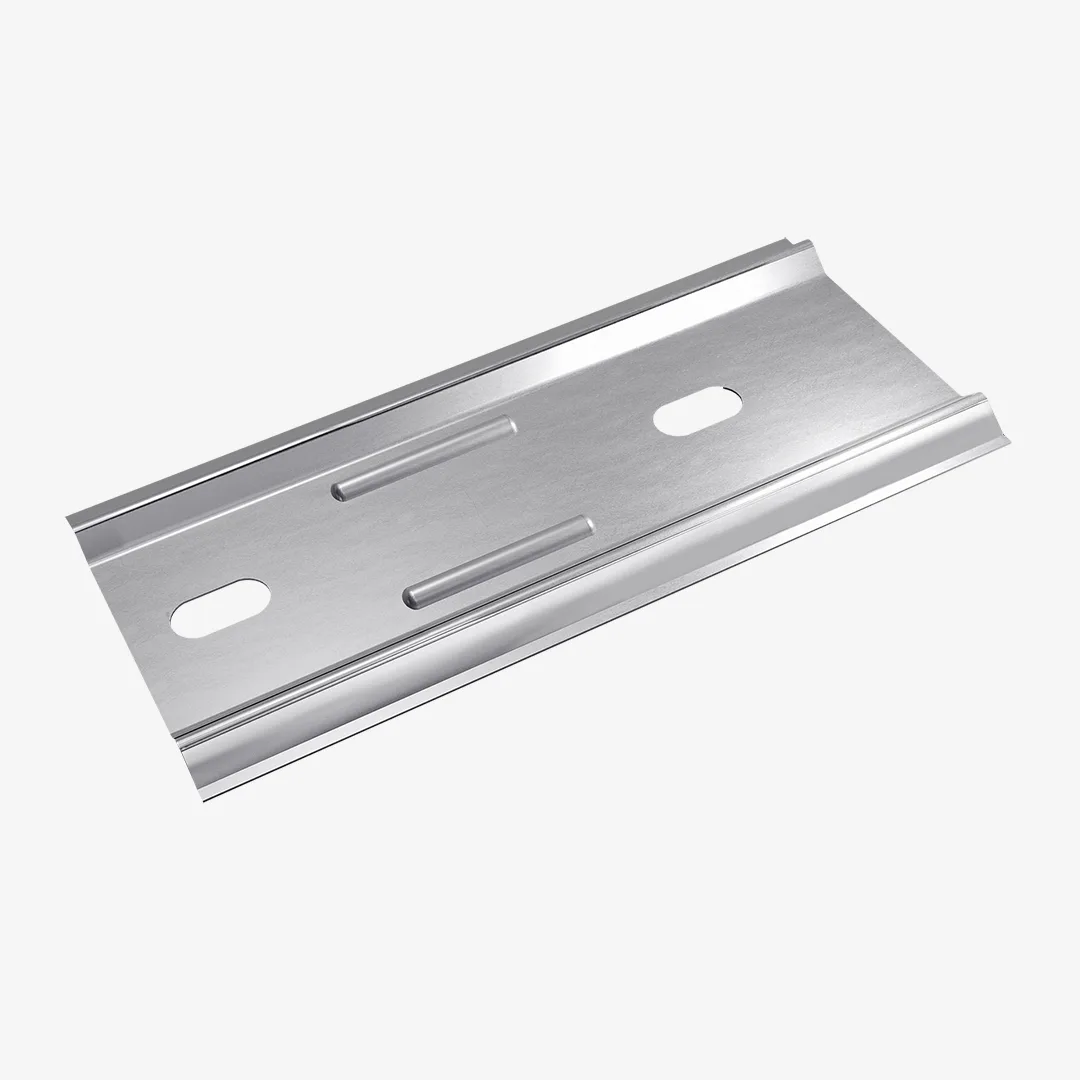

W Straps - Type SPo

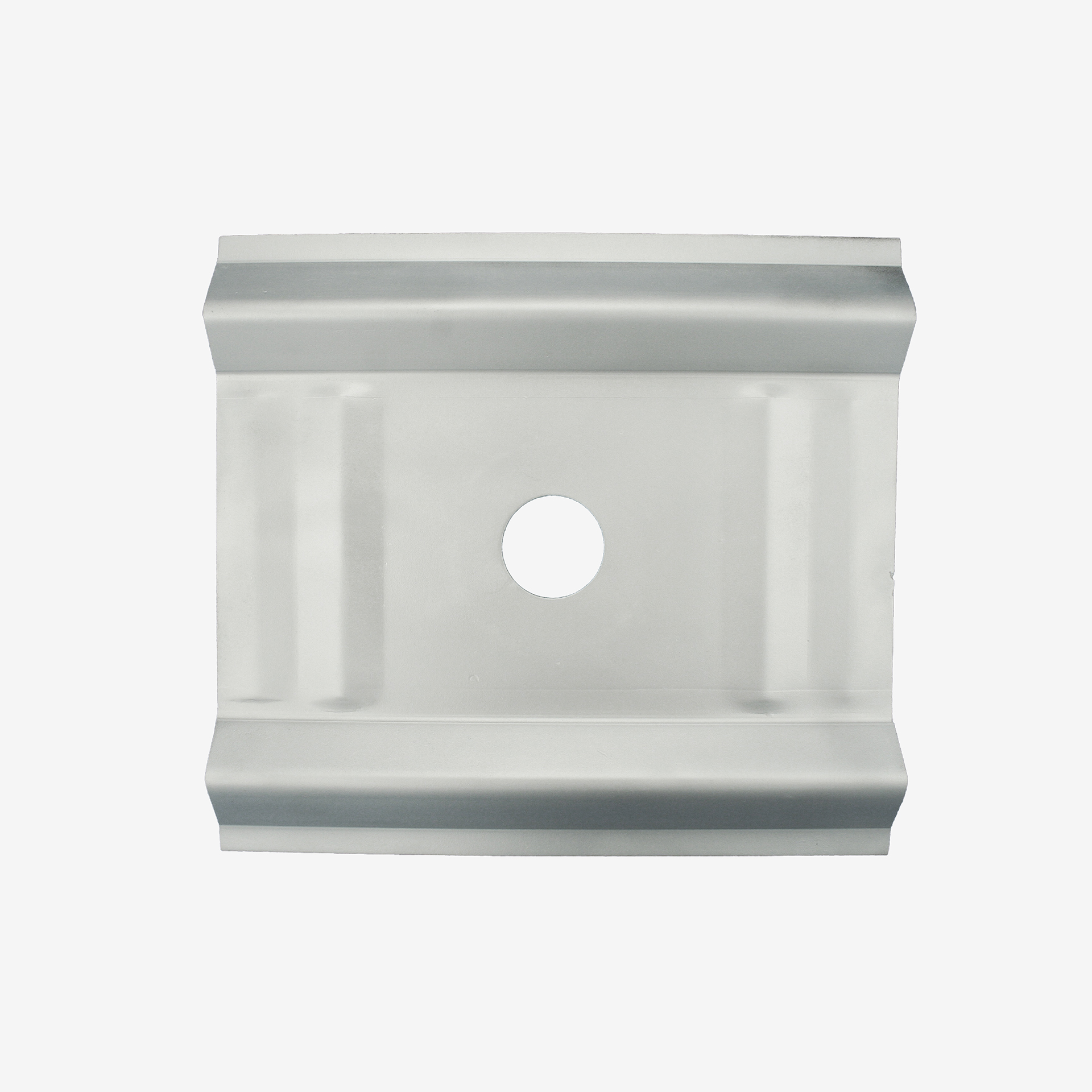

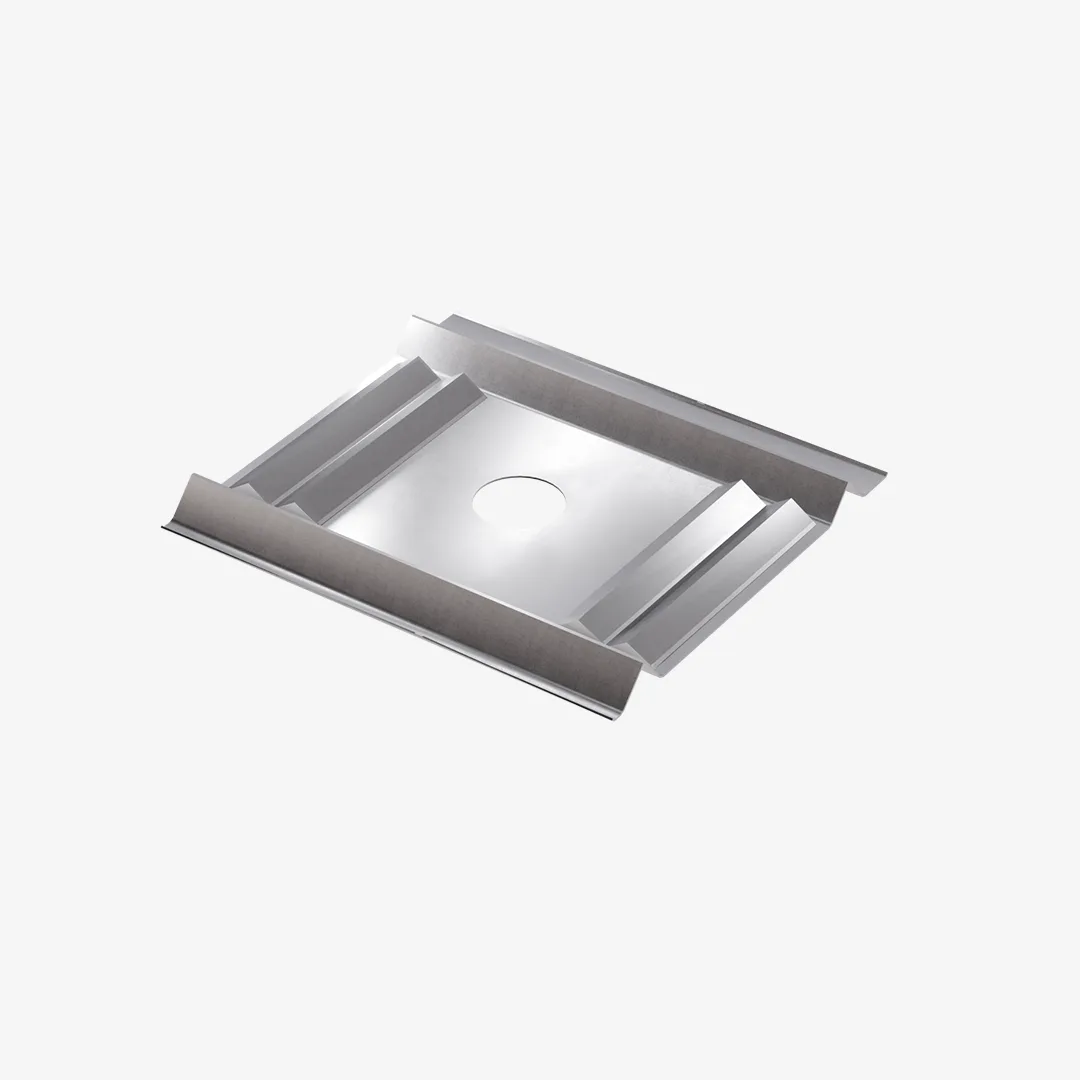

W Straps - Type SPp
Technical Specifications
