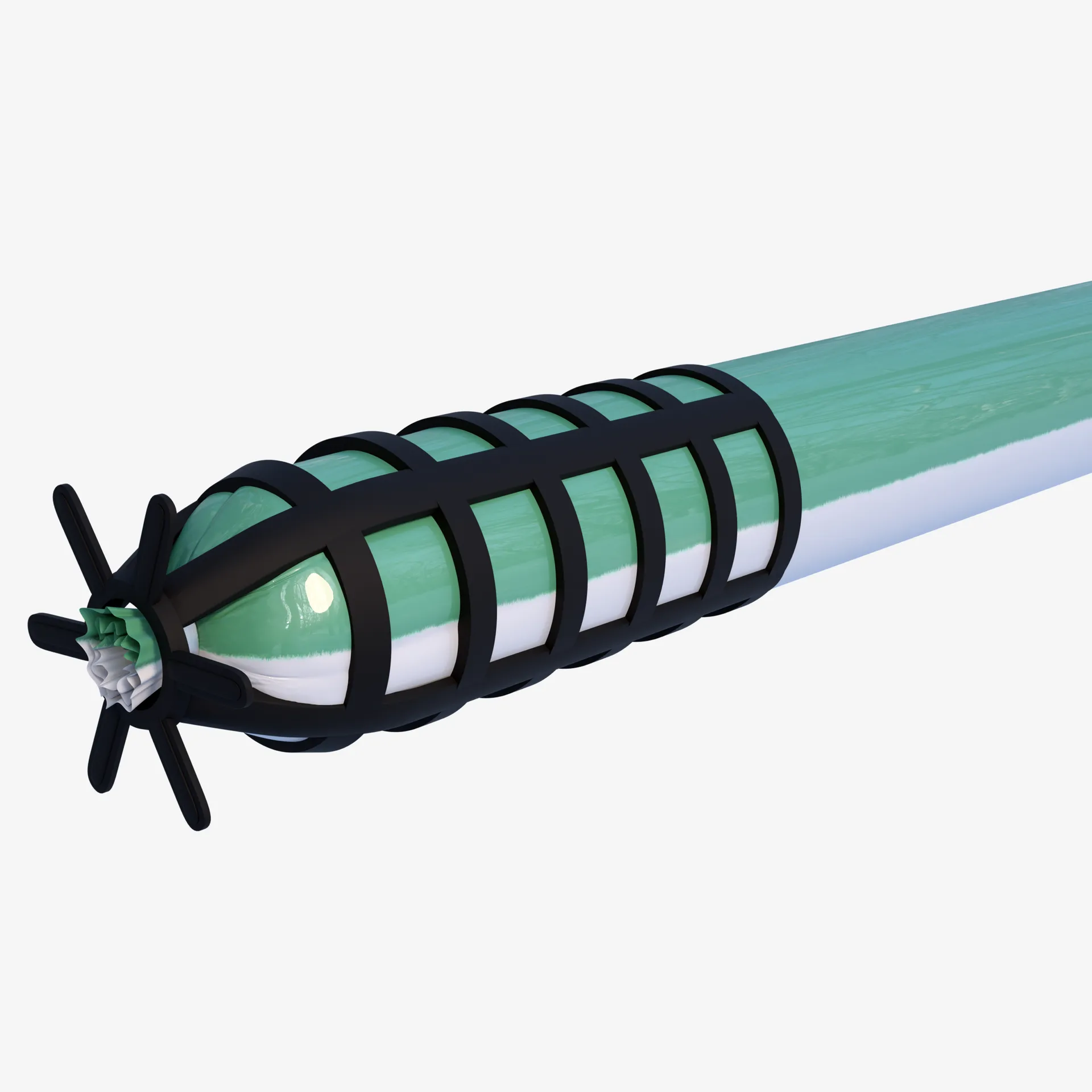

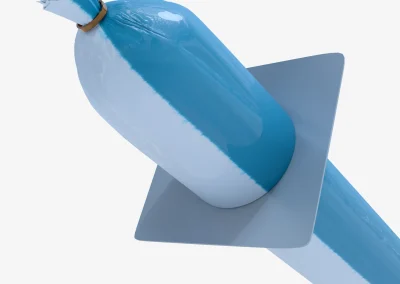

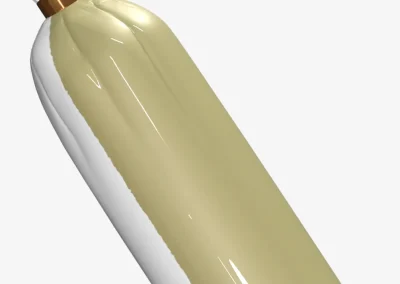

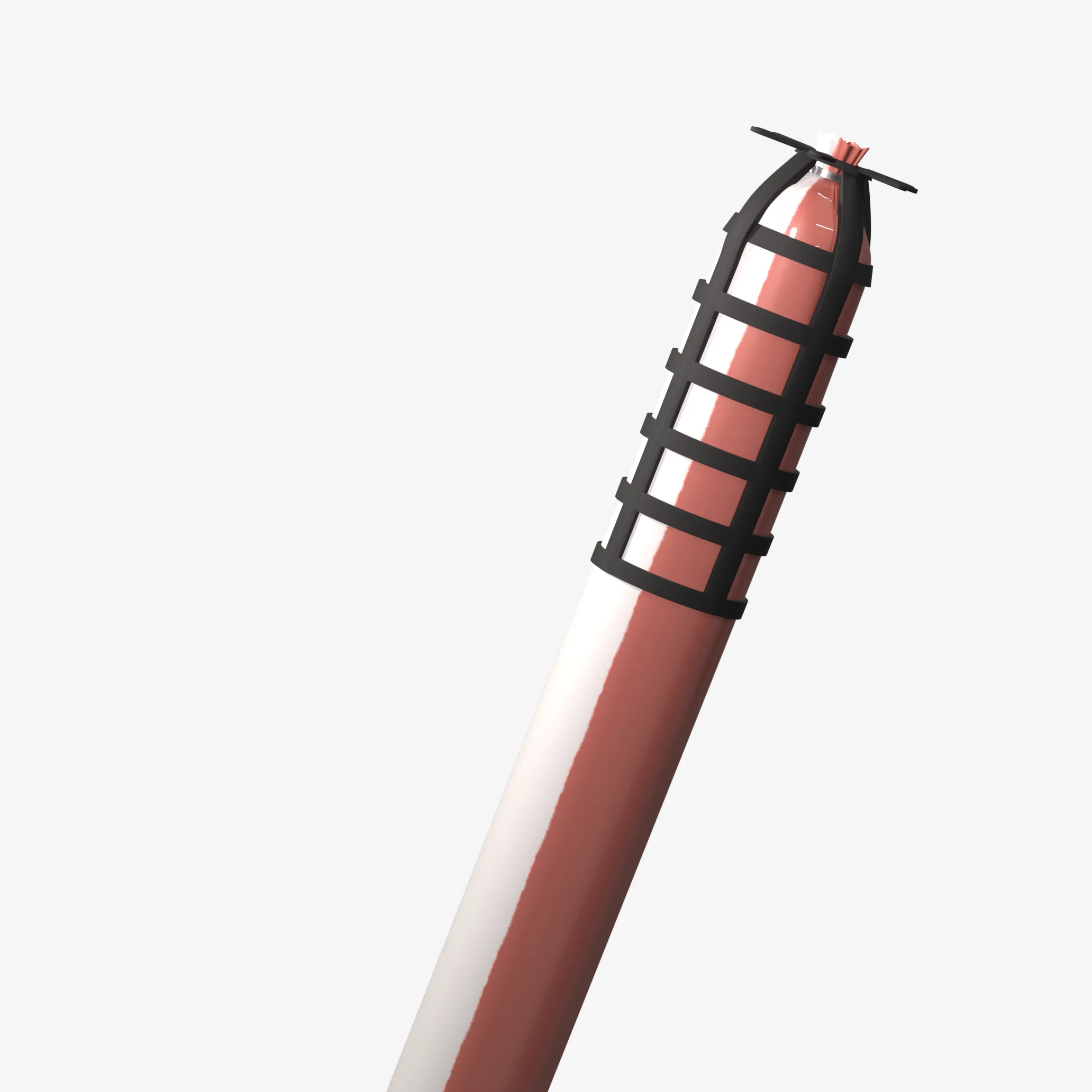

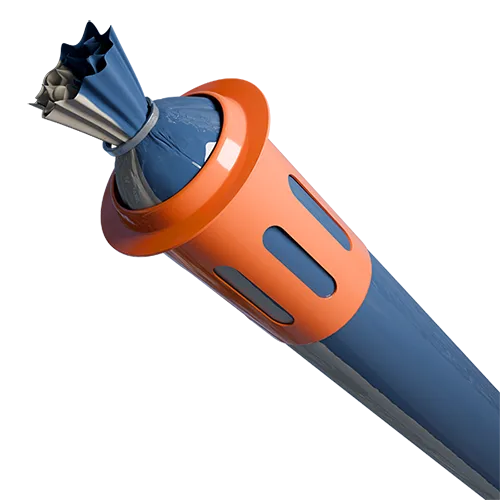

Lokset™ Resin Capsules

The Benchmark in Resin Capsule Anchoring



Lokset™ has been the global leader in resin capsule technology for over five decades. We guarantee secure supply, expert service and unmatched technical support for the most demanding environments.

Product Benefits

Quick and easy application process without the need for mixture preparation and pump
High anchoring effect available in a short time after application
Applicable in dry and wet environments
Can be used in a wide range of ambient temperatures
Can be combined with most common rock-bolts and cable bolts

Sectors

Coal Mining, Metal & Non-Metal Mining, Infrastructure

Applications

Anchoring, Ground control, Soil and rock nailing, Surface control

Product Details

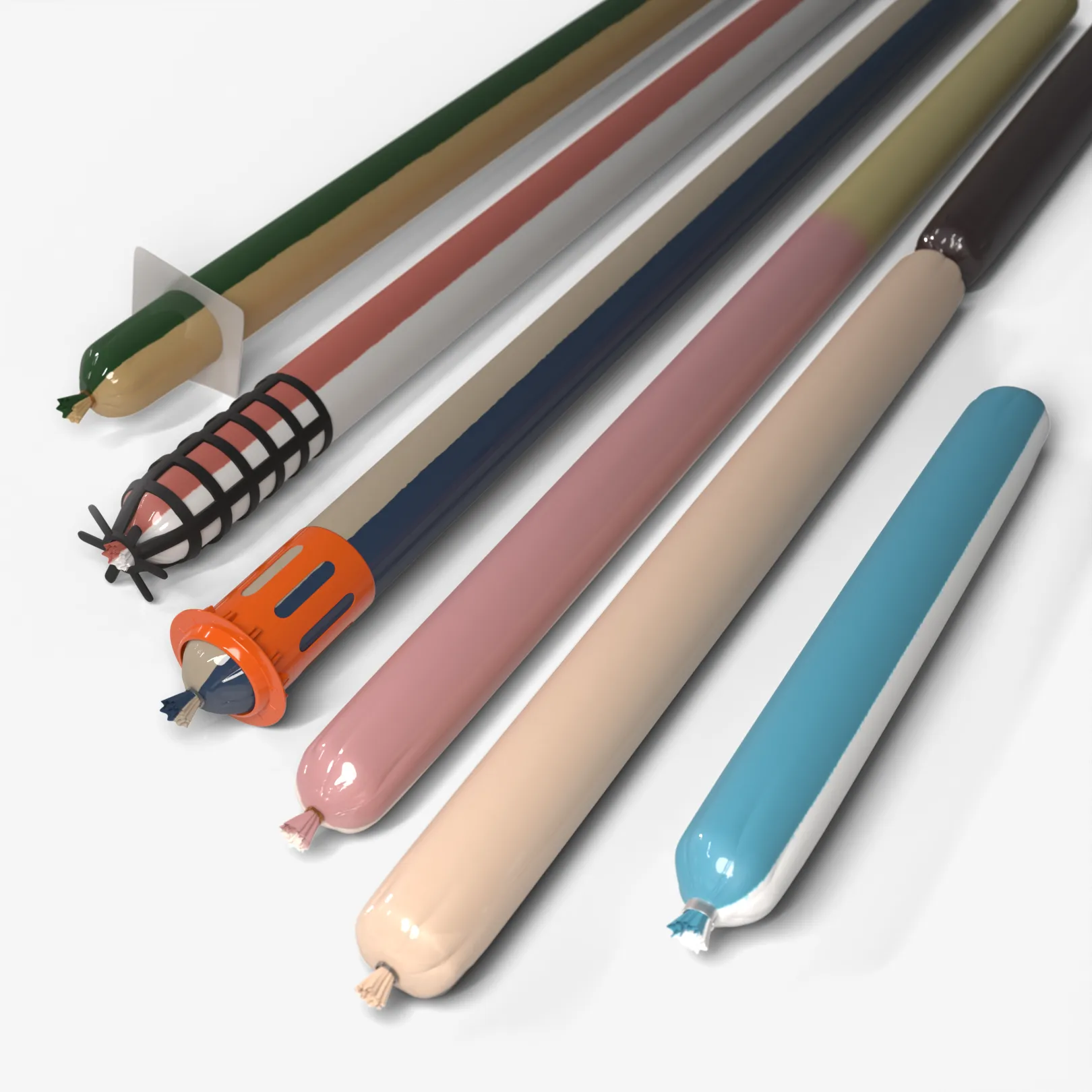

Lokset Resin Capsules deliver fast, predictable anchorage for rock bolts in mining and infrastructure applications. Engineered for consistent mixing and rapid strength gain, Lokset supports safer, more productive ground support installations. The Lokset range includes three capsule types, enabling you to match resin performance precisely to your application and operating environment. Lokset Single Speed provides controlled and consistent setting for standard development cycles where predictable installation timing is essential. Lokset Toospeedie delivers ultra fast gel times and rapid early strength, supporting high productivity development, faster re entry, and early load transfer. Lokset Styrene Free offers reliable anchorage without styrene emissions, helping improve underground air quality while maintaining dependable bolt performance. Each Lokset capsule contains a precisely formulated polyester or water-based resin and catalyst system designed for consistent mixing, controlled set behaviour, and dependable bond strength. This reduces installation variability and supports uniform bolt performance, even in variable hole diameters and challenging strata. Lokset Resin Capsules are available in multiple sizes and strengths and are compatible with a wide range of rock bolts and installation methods. Integrated with Minova’s bolts, consumables, and technical expertise, Lokset enables you to standardise ground support practices while improving safety, efficiency and cost control across your operation.

Product Features

High strength properties

After hardening resin achieves high compressive, shear and adhesion strengths. Due to its modulus of elasticity and strength, it offers minimal creep and 0% volumetric change in the long term.

Quick setting

The strength gain is very rapid and a rock bolt applied with Lokset is almost immediately self-supporting. Depending on the type and temperature, 80% of peak strength is achieved in less than 1 hour.

High chemical resistance and impermeability

The combination of an impermeable cured resin structure with high chemical resistance provides excellent corrosion protection for rock bolts applied with Lokset.

High vibration resistance

The cured Lokset polyester resin is highly resistant to vibrations and oscillations, making it suitable for anchoring near blasting work or for fixing rotating machinery.

Long service life

Lokset cured polyester resin provides long life with high performance under normal conditions.

Product variants & Applications

Product NameAnchoring & Rock BoltingGround Consolidation & StabilisationCavity & Void FillingStructural RepairHeavy Water Ingress & Water ControSewer Repair
 Lokset Capsules

Lokset™ Single Speed

Lokset Single Speed Resin Capsules provide consistent setting and dependable anchorage for standard underground ground support. Designed for predictable performance, they support efficient installation where uniform cycle times are required.

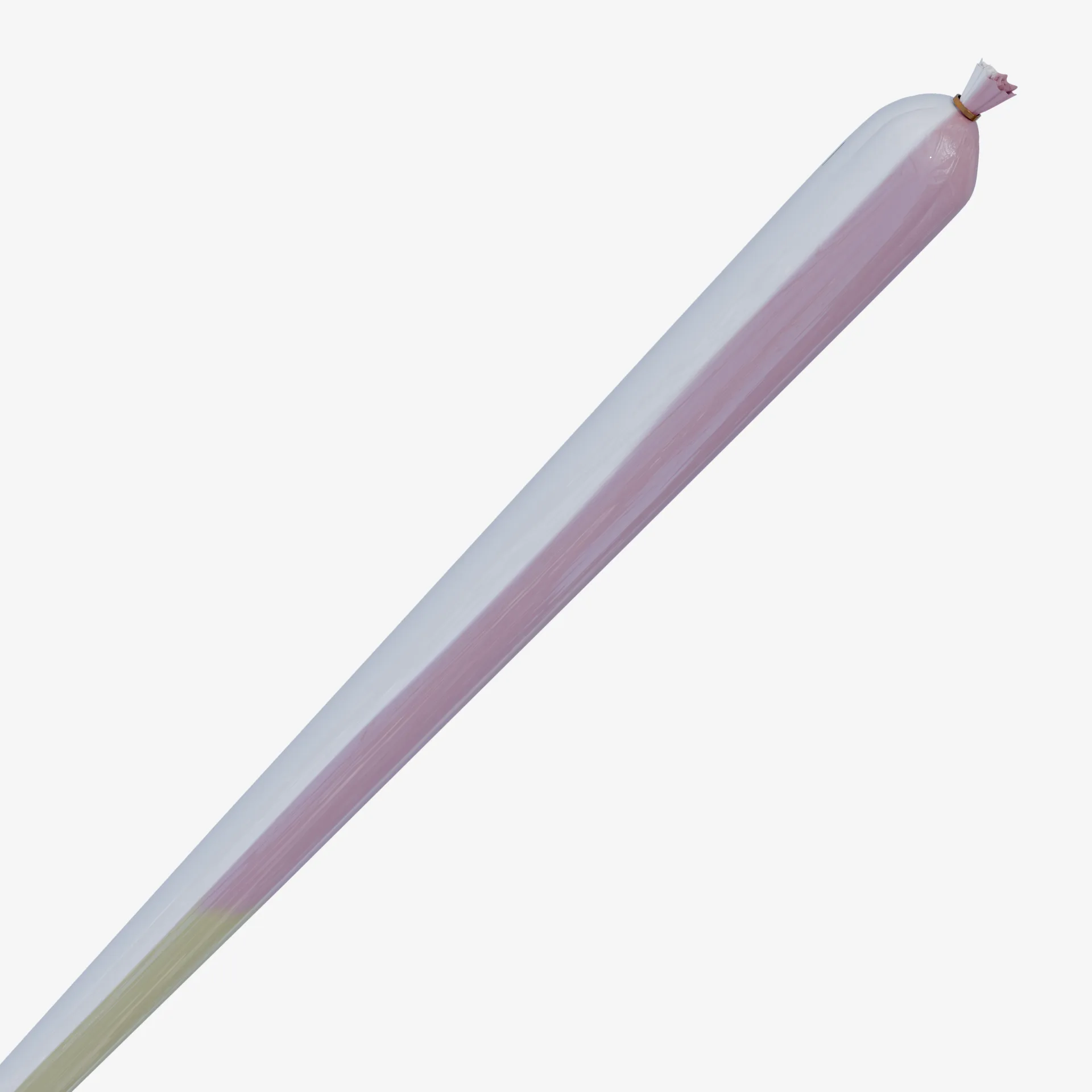

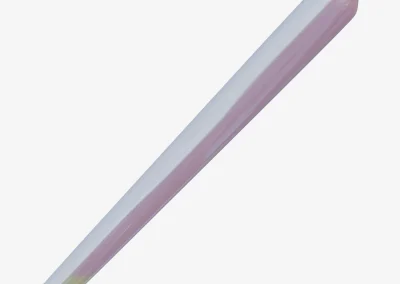

Lokset™ TooSpeedie™

Lokset Toospeedie Resin Capsules deliver ultra‑fast setting performance for rapid bolt installation and early load bearing. Ideal for high‑productivity development, they support faster re‑entry and reduced installation time.

Lokset™ Styrene‑Free

Lokset Styrene‑Free Resin Capsules offer reliable bolt anchorage without styrene emissions. Designed to improve underground air quality, they support safer working environments while maintaining dependable ground support performance.

Technical Specifications
